You are here: Reference > Reports > Database reports > Wi-Fi / VPN users statistics

Wi-Fi/VPN users statistics

All user session events from protected machines are audited and saved in the UserLock database. You can generate Wi-Fi/VPN users statistics reports using different graph types.

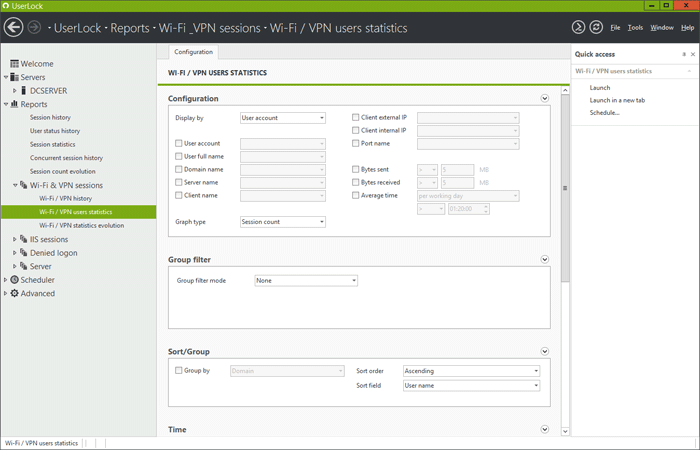

'Configuration' section

Main filters

  • Display by: 'User account', 'User full name' or 'Client name'.
  • User account: Considers only sessions of the selected user account.
  • User full name: Considers only sessions of the selected user name.
  • Domain name: Considers only sessions of the selected domain.
  • Server name: Considers only sessions connected to the specified server.
  • Client name: Considers only sessions from the selected client name.
  • Country: Considers only the country from which the connection was established.
  • Graph type: Select the data type for graphs.

Wi-fi / VPN filters

  • Client external IP: Considers only sessions from the selected client external IP address.
  • Client internal IP: Considers only sessions from the selected client internal IP address.
  • Port name: Considers only sessions connected to the specified port.
  • Bytes sent: Considers only sessions during which the total size of data sent corresponds to the selected criteria.
  • Bytes received: Considers only sessions during which the total size of data received corresponds to the selected criteria.
  • Average time: Considers only sessions corresponding to the selected time criteria.

'Group filter' section

For more information about the Group filters, please read the Common Report Filters page.

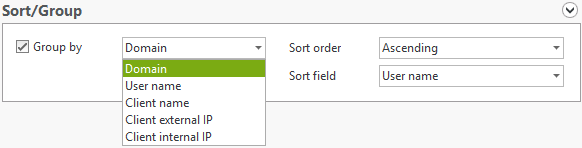

'Sort/Group' section

Enable this section to group displayed data on the report and its associated sort order.

  • Available groups are:
    - Domain: The name of the domain the session connects on.
    - User name: The name of the user owning the session.
    - Client name: The name of the client from which the session is open.
    - Client external IP: The external IP address from which the session is open.
    - Client internal IP: The internal IP address from which the session is open.
  • The sort order 'Ascending' or 'Descending' can be applied on:
    - The 'User name'.
    - The 'Session count'.
    - The 'Total session time'.
    - The 'Average time per session'

'Time' section

For more information about the Time filters, please read the Common Report Filters page.

'Database' section

For more information about the Database filters, please read the Common Report Filters page.

'Report layout' section

For more information about the Layout filters, please read the Common Report Filters page.

Print and export

From the result preview you can decide to print the report or export it to a different format type using actions available in the 'Quick access' panel or the context menu.
