Wi-Fi/VPN history

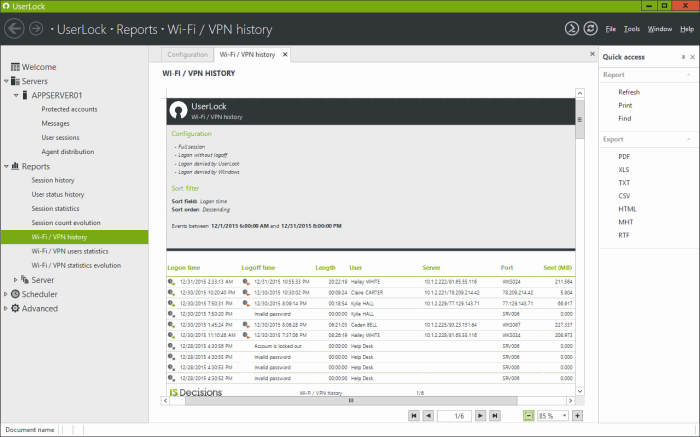

All user session events from protected machines are audited and saved in the UserLock database. This report allows you to display a historical view of all user Wi-Fi/VPN sessions.

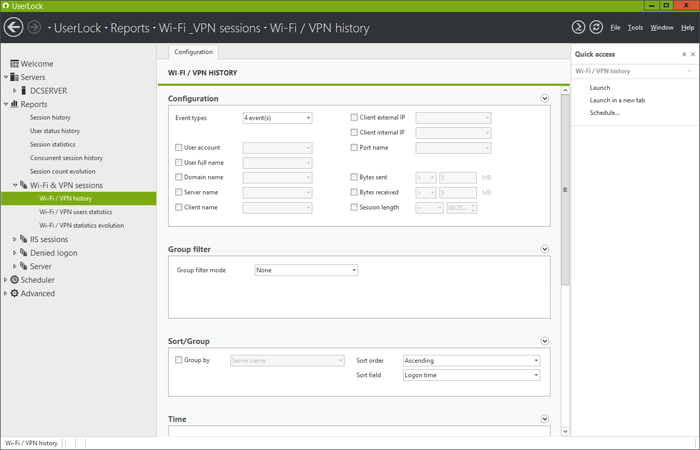

'Configuration' section

Main filters

  • Event types:
    - Full sessions: Displays sessions having a logon and a corresponding logoff.
    - Logon without logoff: Displays sessions without corresponding logoff.
    - Logon denied by UserLock: Displays logons rejected by UserLock.
    - Logon denied by Active Directory: Displays logons rejected by Active Directory.
  • User account: Allows you to display only sessions of the selected user account.
  • User full name: Allows you to display only sessions of the selected user name.
  • Domain name: Allows you to display only sessions of the selected domain.
  • Server name: Allows you to display only sessions connected to the selected server name.
  • Country: Allows you to display the country from which the connection was established.

Wi-fi / VPN filters

  • Client external IP: Allows you to display only sessions from the selected client external IP address.
  • Client internal IP: Allows you to display only sessions from the selected client internal IP address.
  • Port name: Allows you to display only sessions connected to the specified port.
  • Bytes sent: Allows you to display only sessions during which the total size of data sent corresponds to the selected criteria.
  • Bytes received: Allows you to display only sessions during which the total size of data received corresponds to the selected criteria.
  • Session length: Allows you to display only sessions corresponding to the selected time criteria.

'Group filter' section

For more information about the Group filters, please read the Common Report Filters page.

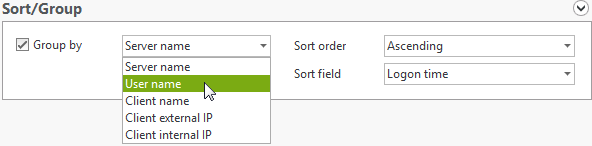

'Sort/Group' section

Enable this section to group displayed data on the report and its associated sort order.

  • Available groups are:
    - Server Name: The name of the server the session connects on.
    - User name: The name of the user owning the session.
    - Client name: The name of the client from which the session is open.
    - Client external IP: The external IP address from which the session is open.
    - Client internal IP: The internal IP address from which the session is open.
  • The sort order 'Ascending' or 'Descending' can be applied on:
    - 'Logon time'.
    - 'Logoff time'.
    - The total number of 'Bytes received'.
    - The total number of 'Bytes sent'.
    - The 'session length'.

'Time' section

For more information about the Time filters, please read the Common Report Filters page.

'Database' section

For more information about the Database filters, please read the Common Report Filters page.

'Report layout' section

For more information about the Layout filters, please read the Common Report Filters page.

Print and export

From the result preview you can decide to print the report or export it to a different format type using actions available in the 'Quick access' panel or the context menu.
